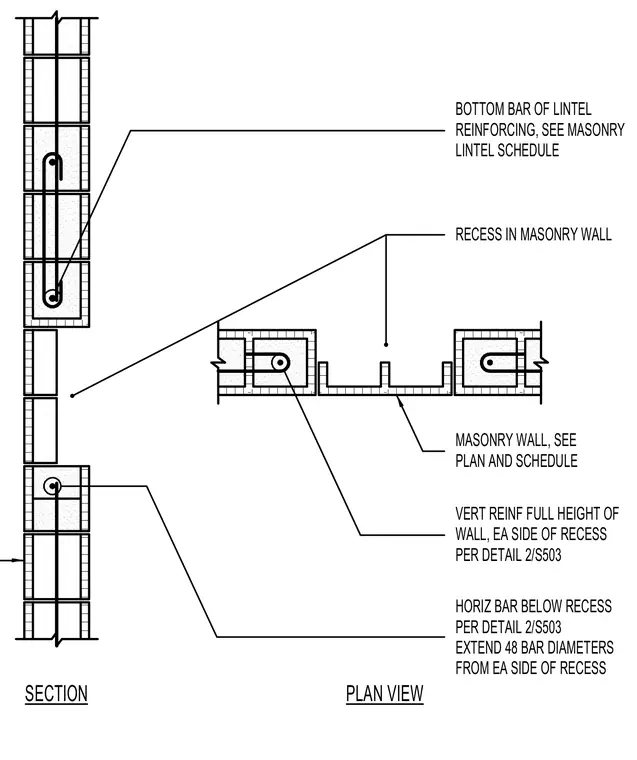

Masonry wall recesses require specific vertical and horizontal reinforcing details to maintain structural integrity. Vertical reinforcement is placed continuously full height on each side of the recess per detail requirements. Horizontal bars located below the recess extend forty-eight bar diameters past each side of the recess. Lintel bottom bar reinforcing is sized per the masonry lintel schedule.
PER DETAIL 2/S503 PER DETAIL 2/S503 SECTION PLAN VIEW BOTTOM BAR OF LINTEL REINFORCING, SEE MASONRY LINTEL SCHEDULE RECESS IN MASONRY WALL VERT REINF FULL HEIGHT OF WALL, EA SIDE OF RECESS HORIZ BAR BELOW RECESS EXTEND 48 BAR DIAMETERS FROM EA SIDE OF RECESS MASONRY WALL, SEE PLAN AND SCHEDULE
