Structural · S-N9SYA

Typical Combined Footing Elevation

Materials

Concrete Reinforced Concrete Steel

Elements

Columns Walls Floors / Slabs Foundations / Footings Stem Walls Anchors / Embeds Reinforcing

Connections

Braced Frame Connection Rebar Splice / Development

About this detail

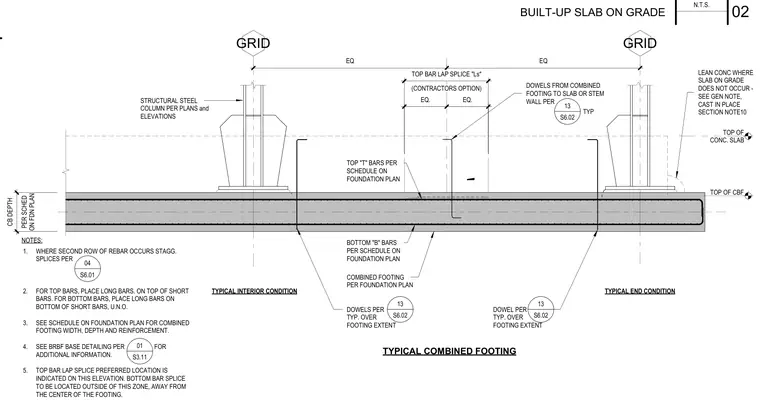

A typical combined footing elevation with reinforced concrete construction supports structural steel columns at grid lines. The footing includes top "T" bars and bottom "B" bars sized per the foundation plan schedule, with dowels extending to slabs or stem walls across the footing extent. Top bar lap splices are located centrally with contractor options for positioning, while bottom bar splices are placed outside the center zone. Additional provisions cover lean concrete beneath slabs on grade and specific rebar layering rules for staggered splices.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
