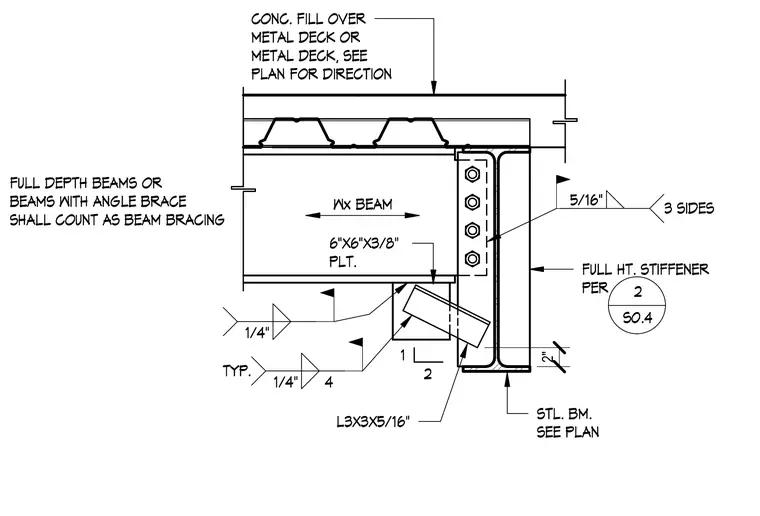

A structural steel framing connection details a bottom flange brace framing into a supporting steel beam. A W-shape beam supports a metal deck with concrete fill above. An angle brace designated as L3x3x5/16 connects via a 6-inch by 6-inch by 3/8-inch plate to the bottom flange of the supported beam and welds to the supporting column or beam web. A full-height stiffener per detail 2 on sheet S0.4 is welded to the web of the supporting steel beam with a 5/16-inch fillet weld on three sides. Fillet welds of 1/4-inch size are applied typically at the connection plates.
STL. BM. SEE PLAN CONC. FILL OVER METAL DECK OR METAL DECK, SEE PLAN FOR DIRECTION Wx BEAM 1/4" 4 TYP. FULL DEPTH BEAMS OR BEAMS WITH ANGLE BRACE SHALL COUNT AS BEAM BRACING 6"X6"X3/8" PLT. 1/4" L3X3X5/16" FULL HT. STIFFENER PER 2 S0.4 5/16" 3 SIDES 1 2 2"
