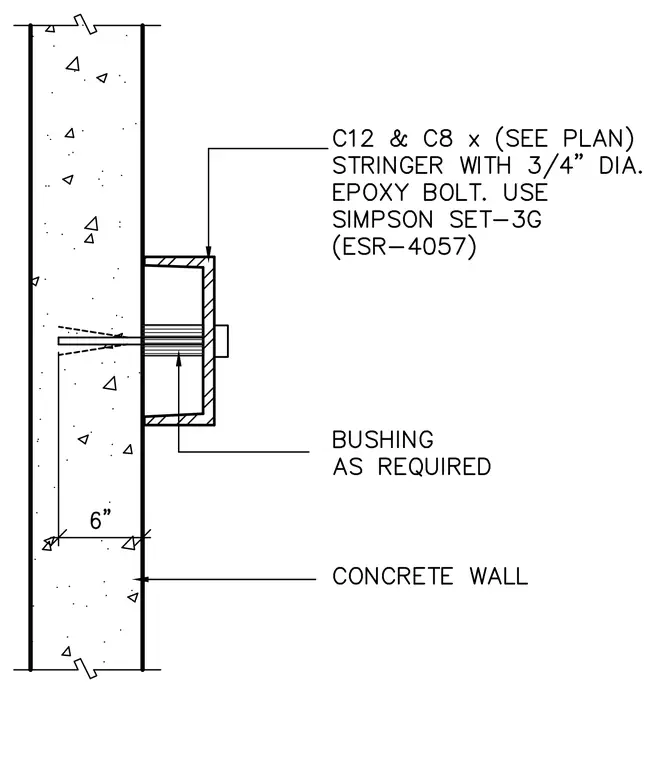

A C12 or C8 steel channel stringer is anchored to a 6-inch thick concrete wall using a 3/4-inch diameter epoxy bolt. The connection utilizes a Simpson SET-3G epoxy adhesive, which is compliant with ESR-4057. A bushing is installed as required between the stringer web and the concrete face to ensure proper bearing and alignment. The specific stringer size is determined per the project plans.
