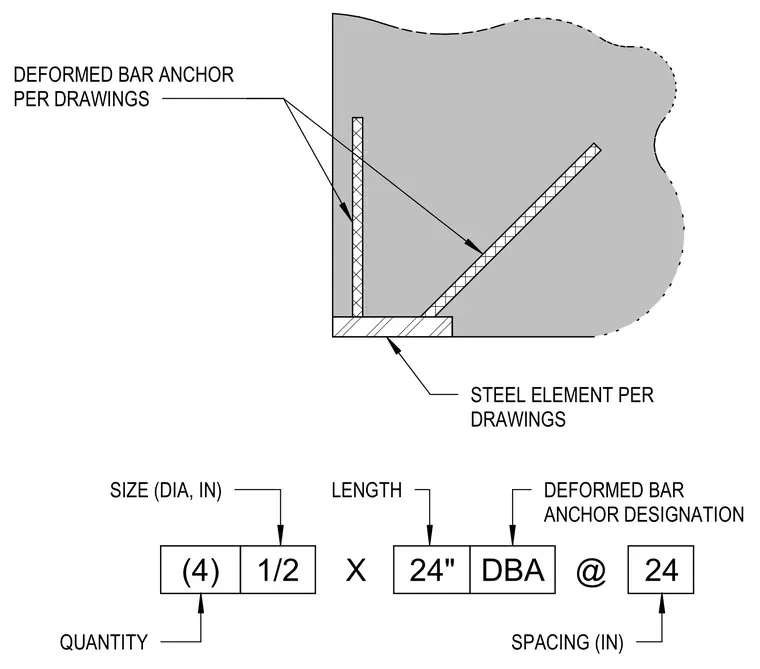

Four one-half-inch diameter by twenty-four-inch long deformed bar anchors are welded to a structural steel element and embedded into concrete. The designation callout indicates a spacing of twenty-four inches on center.
(4) 1/2 X 24" DBA @ 24 QUANTITY SIZE (DIA, IN) LENGTH DEFORMED BAR ANCHOR DESIGNATION SPACING (IN) DEFORMED BAR ANCHOR PER DRAWINGS STEEL ELEMENT PER DRAWINGS
