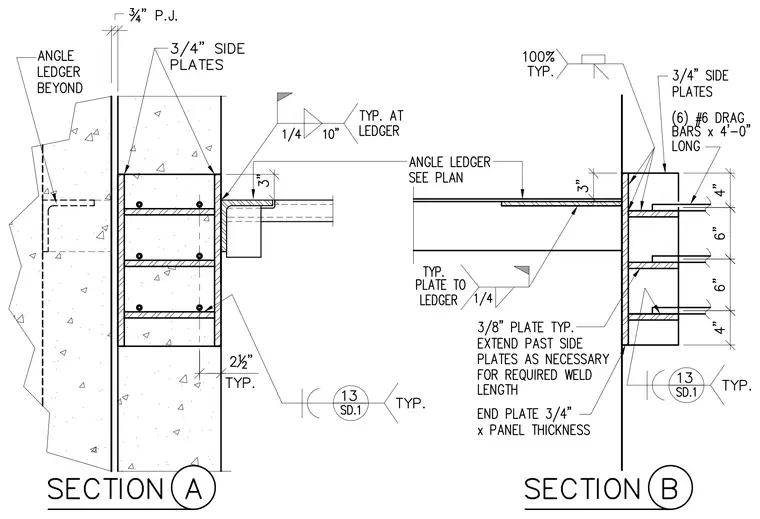

The assembly features a precast concrete wall panel connected to an angle ledger sized per plan, welded with a quarter-inch fillet weld at ten inches typical at the ledger. Three-quarter-inch side plates flank the connection, secured with three-eighth-inch typical plates extended past side plates as necessary for required weld length. End plates measure three-quarters of an inch by the panel thickness. Six number 6 drag bars measuring four feet long tie into the panel with vertical spacings of four inches and six inches.
