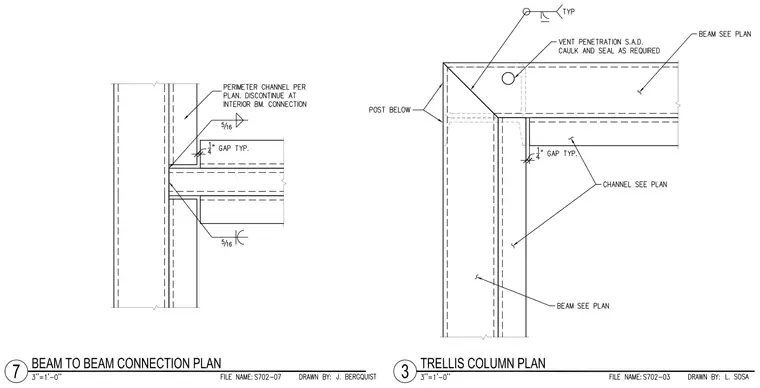

The left detail shows a perimeter channel connected per plan, discontinued at the interior beam connection with a one-quarter inch gap typical and five-sixteenth inch fillet welds. The right detail shows a trellis column corner connection with a gusset plate, a vent penetration sealed as required, and intersecting beams and channels sized per plan maintaining a one-quarter inch gap typical.
