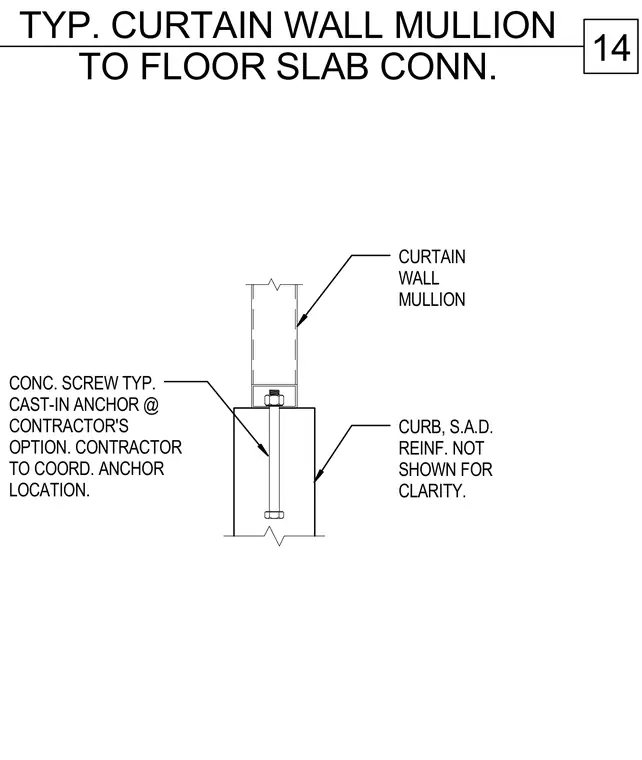

A curtain wall mullion connects to a concrete curb using typical concrete screws or a cast-in anchor provided at the contractor's option, with the contractor responsible for coordinating the anchor location. The concrete curb reinforcement is omitted for clarity.
CURB, S.A.D. REINF. NOT SHOWN FOR CLARITY. CURTAIN WALL MULLION CONC. SCREW TYP. CAST-IN ANCHOR @ CONTRACTOR'S OPTION. CONTRACTOR TO COORD. ANCHOR LOCATION. 14 TYP. CURTAIN WALL MULLION TO FLOOR SLAB CONN.
