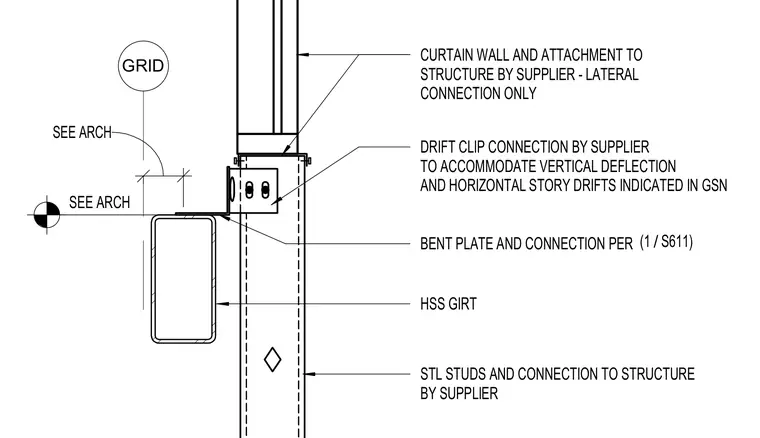

A hollow structural section girt ties back to the primary structure with a bent plate and connection detailed per sheet S611. A supplier-provided drift clip connection fastens the steel studs and curtain wall to accommodate vertical deflection and horizontal story drifts as indicated in the general structural notes. The curtain wall provides lateral connection only.
GRID SEE ARCH SEE ARCH BENT PLATE AND CONNECTION PER / (1 S611) DRIFT CLIP CONNECTION BY SUPPLIER TO ACCOMMODATE VERTICAL DEFLECTION AND HORIZONTAL STORY DRIFTS INDICATED IN GSN CURTAIN WALL AND ATTACHMENT TO STRUCTURE BY SUPPLIER - LATERAL CONNECTION ONLY HSS GIRT STL STUDS AND CONNECTION TO STRUCTURE BY SUPPLIER
