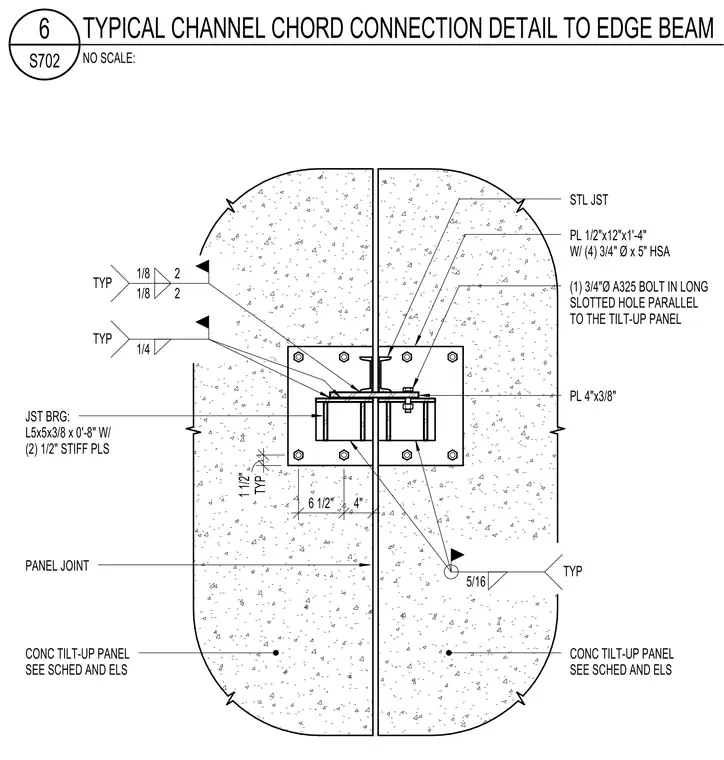

A steel joist bears on an L5x5x3/8 angle measuring 0'-8" long with two 1/2" stiffener plates welded to a 1/2"x12"x1'-4" steel plate secured by four 3/4" diameter by 5" high strength anchors. A 4"x3/8" plate connects with one 3/4" diameter A325 bolt placed in a long slotted hole parallel to the tilt-up panel. The assembly accommodates movement near a panel joint across adjacent concrete tilt-up panels.
PANEL JOINT JST BRG: L5x5x3/8 x 0'-8" W/ (2) 1/2" STIFF PLS STL JST PL 1/2"x12"x1'-4" W/ (4) 3/4" Ø x 5" HSA PL 4"x3/8" (1) 3/4"Ø A325 BOLT IN LONG SLOTTED HOLE PARALLEL TO THE TILT-UP PANEL 6 1/2" 4" TYP 5/16 1/8 TYP 1/8 2 2 TYP 1/4 CONC TILT-UP PANEL SEE SCHED AND ELS CONC TILT-UP PANEL SEE SCHED AND ELS TYP 1 1/2" NO SCALE: S702 6 TYPICAL CHANNEL CHORD CONNECTION DETAIL TO EDGE BEAM
