Structural · S-N99PJ

Roof Metal Deck Details and Notes

Materials

Steel Metal (misc.)

Elements

Columns Beams Roofs Decks Arches Connections / Plates Roof / Floor Openings

Connections

HSS Connection Deck Attachment

About this detail

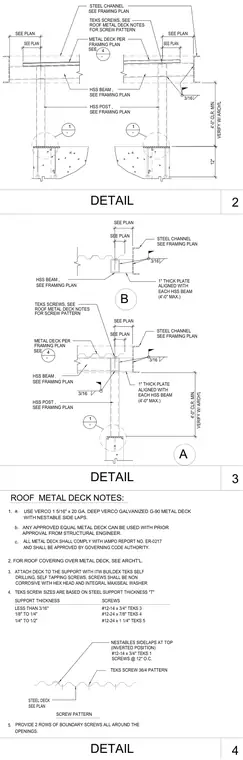

Roof metal deck connections are supported by hollow structural section beams and posts, steel channels, and one-inch thick plates aligned with each hollow structural section beam at a maximum spacing of four feet. Metal deck consists of deep galvanized units with nestable side laps attached using self-drilling self-tapping screws with hexagonal heads and integral washers. Fillet welds connect structural steel elements per the framing plan. A companion schedule and notes specify fastener sizes based on support thickness.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
