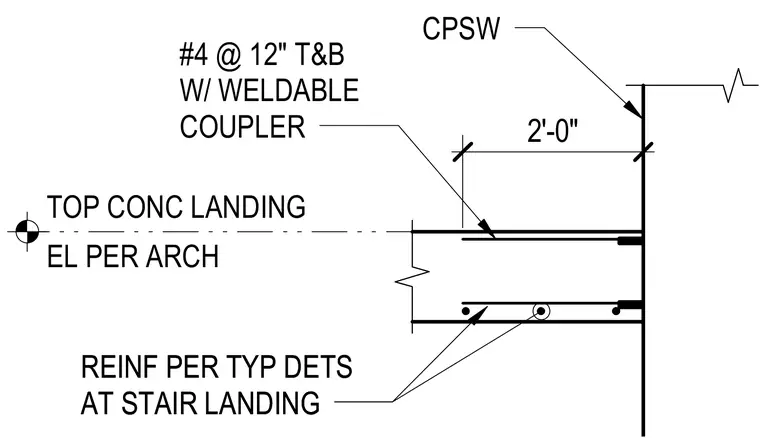

A concrete stair landing slab frames into a concrete shear wall parallel to the stair run, anchored with number four reinforcing bars spaced at twelve inches on center top and bottom. Each reinforcing bar terminates into a weldable coupler embedded at the shear wall interface, extending two feet into the landing slab. Additional reinforcing follows standard typical details for stair landings, maintaining elevations determined per architectural drawings.
EL PER ARCH TOP CONC LANDING REINF PER TYP DETS AT STAIR LANDING REINF PER TYP DETS AT STAIR LANDING 2'-0" #4 @ 12" T&B W/ WELDABLE COUPLER CPSW
