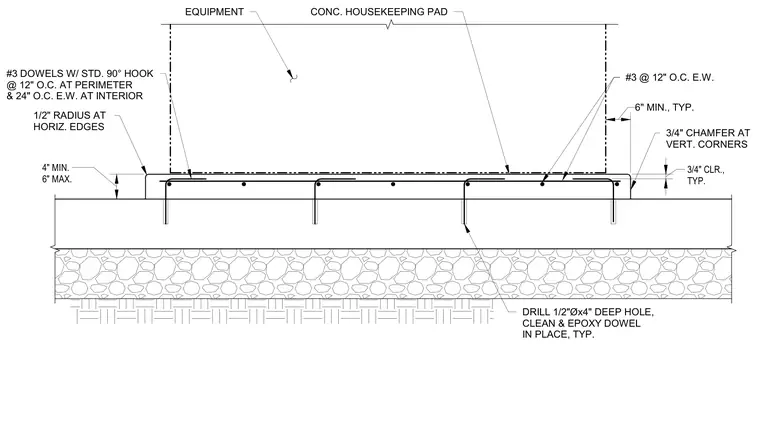

A concrete housekeeping pad with a minimum thickness of 6 inches sits atop a structural slab on grade. The pad features a 3/4-inch chamfer at vertical corners and a 1/2-inch radius at horizontal edges, maintaining a 3/4-inch clear cover. Number 3 dowels with standard 90-degree hooks are spaced at 12 inches on center at the perimeter and 24 inches on center each way at the interior, anchored into drilled holes with epoxy. Additional number 3 reinforcing bars run each way at 12 inches on center.
1/2" RADIUS AT HORIZ. EDGES #3 DOWELS W/ STD. 90° HOOK @ 12" O.C. AT PERIMETER & 24" O.C. E.W. AT INTERIOR EQUIPMENT CONC. HOUSEKEEPING PAD 6" MIN., TYP. #3 @ 12" O.C. E.W. 3/4" CHAMFER AT VERT. CORNERS DRILL 1/2"Øx4" DEEP HOLE, CLEAN & EPOXY DOWEL IN PLACE, TYP. 3/4" CLR., TYP. 4" MIN. 6" MAX.
