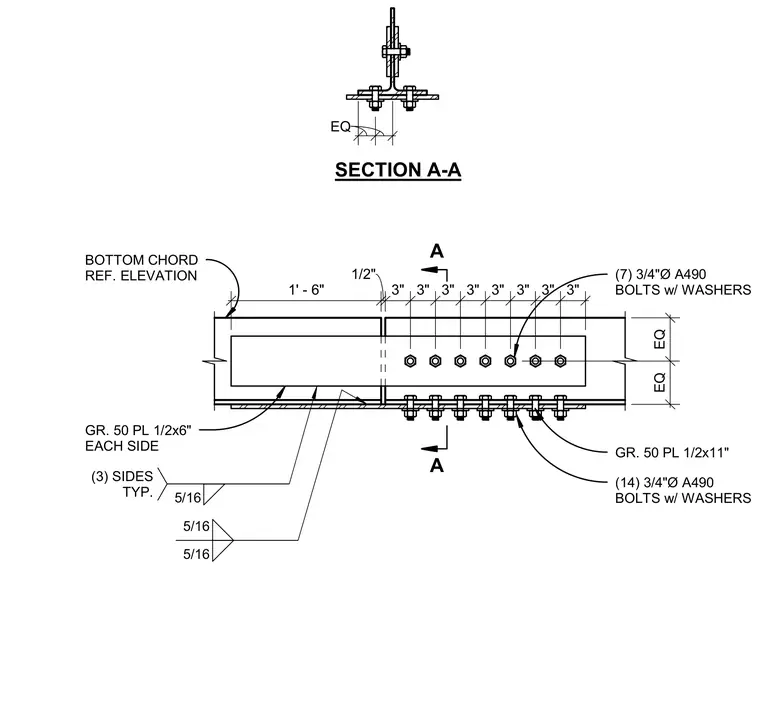

A bolted chord splice connection utilizes Grade 50 steel plates and high-strength bolts. The connection incorporates a 1/2-inch by 11-inch bottom plate secured with fourteen 3/4-inch diameter A490 bolts with washers, alongside 1/2-inch by 6-inch plates on each side attached with seven 3/4-inch diameter A490 bolts. Fillet welds of 5/16-inch size are applied on three sides typically.
1' - 6" 1/2" 3" 3" 3" 3" 3" 3" 3" 3" EQ EQ EQ EQ (7) 3/4"Ø A490 BOLTS w/ WASHERS (14) 3/4"Ø A490 BOLTS w/ WASHERS GR. 50 PL 1/2x11" BOTTOM CHORD REF. ELEVATION GR. 50 PL 1/2x6" EACH SIDE 5/16 5/16 5/16 (3) SIDES TYP. A A SECTION A-A
