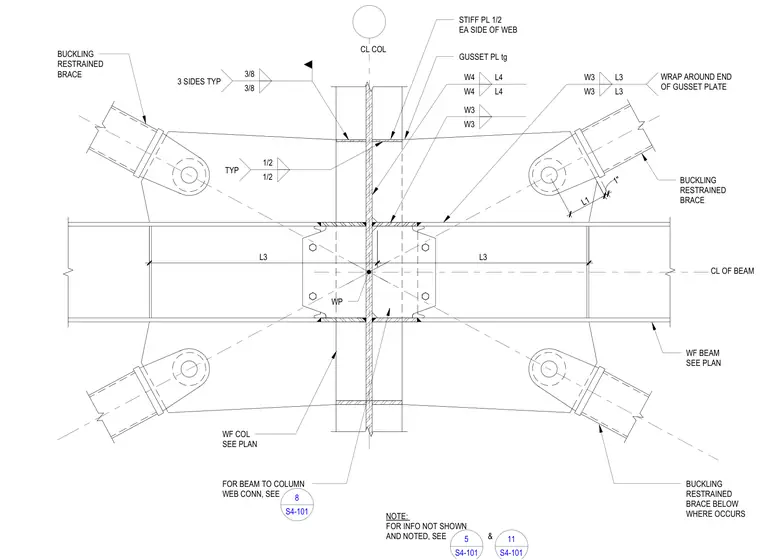

Buckling restrained braces frame into a wide flange steel column web through gusset plates welded to the column flanges and web. One-half-inch thick stiffener plates are welded to each side of the column web aligned with the beam flanges. Gusset plates feature wrap-around end details and connect to the brace assemblies using pin connections. A wide flange beam intersects the column web orthogonally, with specific beam-to-column web connection details referenced to other sheets.
L3 L3 1" L1 BUCKLING RESTRAINED BRACE 3/8 3/8 3 SIDES TYP 1/2 1/2 TYP CL COL STIFF PL 1/2 EA SIDE OF WEB GUSSET PL tg W4 L4 W4 L4 W3 W3 W3 L3 W3 L3 WRAP AROUND END OF GUSSET PLATE BUCKLING RESTRAINED BRACE WF BEAM SEE PLAN CL OF BEAM WP BUCKLING RESTRAINED BRACE BELOW WHERE OCCURS WF COL SEE PLAN FOR BEAM TO COLUMN WEB CONN, SEE 8 S4-101 NOTE: FOR INFO NOT SHOWN AND NOTED, SEE & 5 S4-101 11 S4-101
