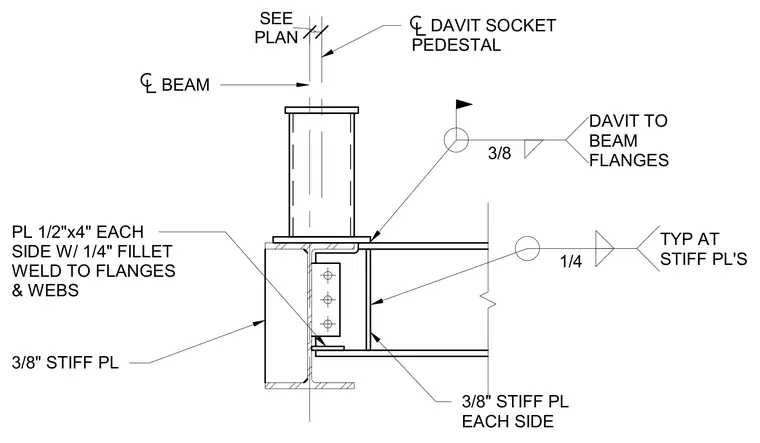

A davit socket pedestal is welded directly to the top flange of a supporting structural steel beam with a three-eighths-inch fillet weld. Three-eighths-inch stiffener plates are welded to each side of the beam web and flanges using one-quarter-inch fillet welds. Additional one-half-inch by four-inch plates are provided on each side with one-quarter-inch fillet welds to the flanges and webs.
3/8" STIFF PL PL 1/2"x4" EACH SIDE W/ 1/4" FILLET WELD TO FLANGES & WEBS BEAM 3/8" STIFF PL EACH SIDE DAVIT SOCKET PEDESTAL PLAN SEE 3/8 DAVIT TO BEAM FLANGES 1/4 TYP AT STIFF PL'S
