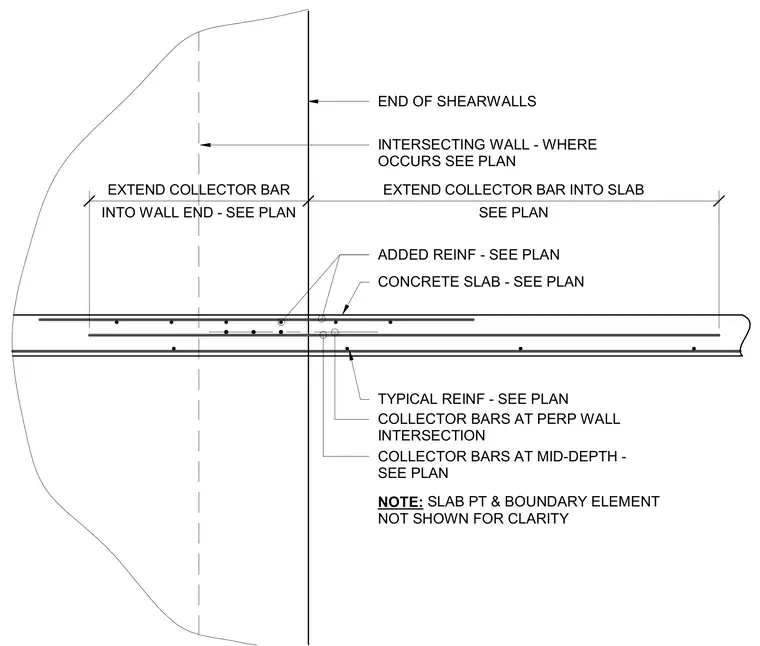

Collector bars extend into the concrete slab and wall end per plan dimensions. Additional reinforcement and collector bars at the mid-depth and perpendicular wall intersection are provided within the slab. Slab post-tensioning and boundary elements are omitted for clarity.
INTERSECTING WALL - WHERE OCCURS SEE PLAN INTO WALL END - SEE PLAN EXTEND COLLECTOR BAR SEE PLAN EXTEND COLLECTOR BAR INTO SLAB END OF SHEARWALLS COLLECTOR BARS AT PERP WALL INTERSECTION COLLECTOR BARS AT MID-DEPTH - SEE PLAN NOTE: SLAB PT & BOUNDARY ELEMENT NOT SHOWN FOR CLARITY ADDED REINF - SEE PLAN CONCRETE SLAB - SEE PLAN TYPICAL REINF - SEE PLAN
