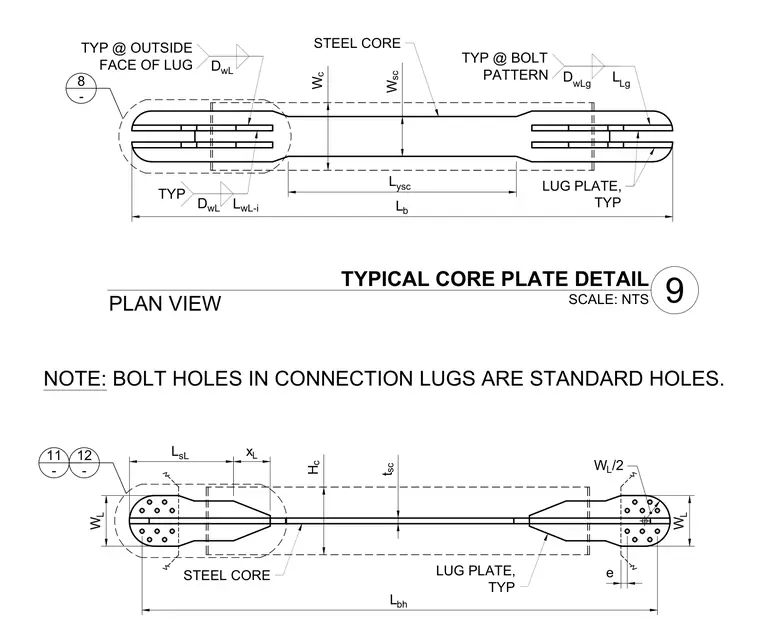

A steel core plate connection features lug plates welded to the outside faces of the core plate. Standard bolt holes are provided in the connection lugs for fastening. Dimensioning variables define the overall plate length, width, and edge distances for the bolt pattern.
L b L ysc W c W sc D wL 8 - D wL L wL-i L bh L sL x L H c t sc e W L 12 - STEEL CORE LUG PLATE, TYP W L /2 W L TYP D wLg L Lg TYP @ BOLT PATTERN STEEL CORE LUG PLATE, TYP TYP @ OUTSIDE FACE OF LUG 9 TYPICAL CORE PLATE DETAIL SCALE: NTS PLAN VIEW 11 - NOTE: BOLT HOLES IN CONNECTION LUGS ARE STANDARD HOLES.
