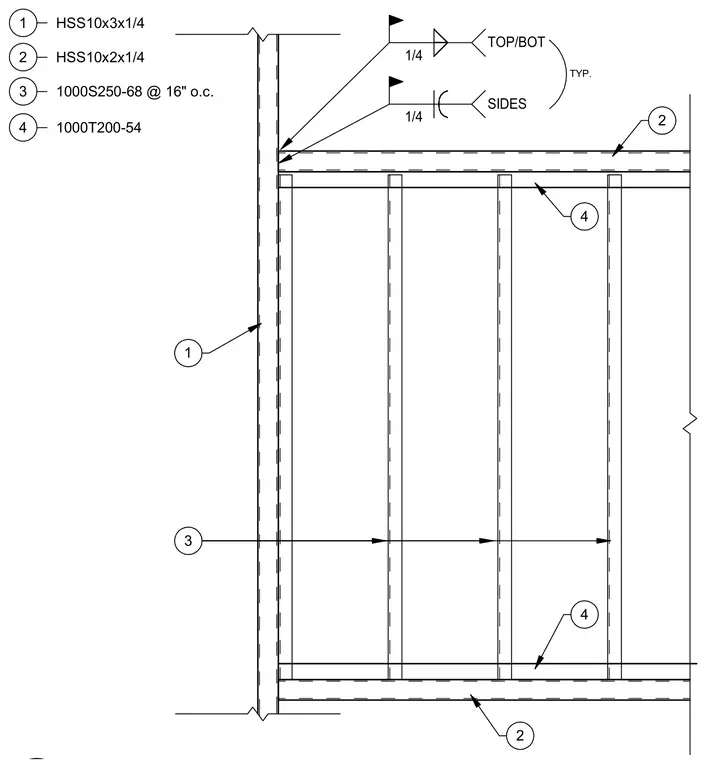

A hollow structural section column designated as HSS10x3x1/4 receives framing members connected with one-quarter-inch fillet welds at the top, bottom, and sides. Cold-formed steel studs of size 1000S250-68 are spaced at sixteen inches on center and bounded by top and bottom tracks of size 1000T200-54. An adjacent horizontal member of size HSS10x2x1/4 ties into the assembly.
1/4 TOP/BOT 1/4 SIDES TYP. 1 HSS10x3x1/4 1 2 2 HSS10x2x1/4 3 1000S250-68 @ 16" o.c. 4 1000T200-54 2 4 4 3
