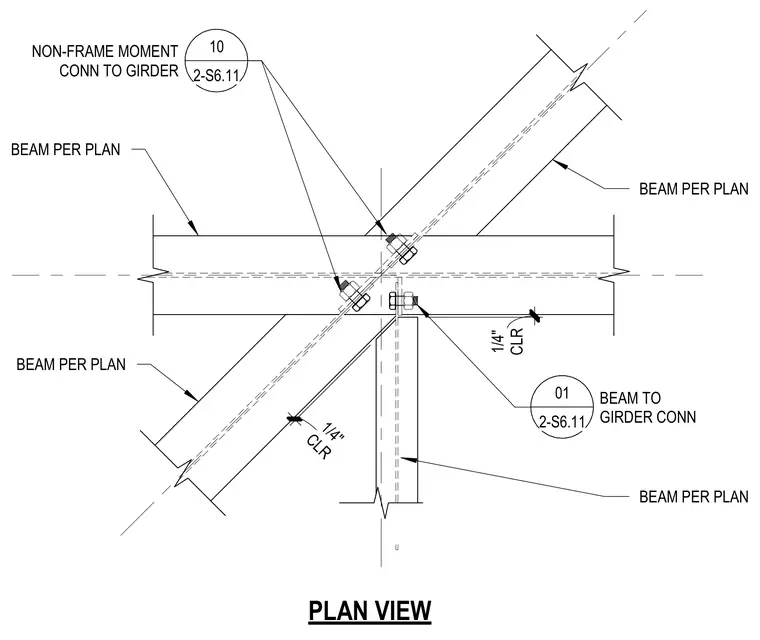

A skewed steel canopy beam connects to a continuous steel girder using a non-frame moment connection detailed per plan. A quarter-inch clearance is maintained at the beam-to-girder interface. Connecting hardware includes structural bolts fastened through the web and flange assemblies.
NON-FRAME MOMENT CONN TO GIRDER 10 2-S6.11 BEAM PER PLAN BEAM PER PLAN BEAM PER PLAN PLAN VIEW CLR 1/4" CLR 1/4" BEAM TO GIRDER CONN 01 2-S6.11 BEAM PER PLAN
