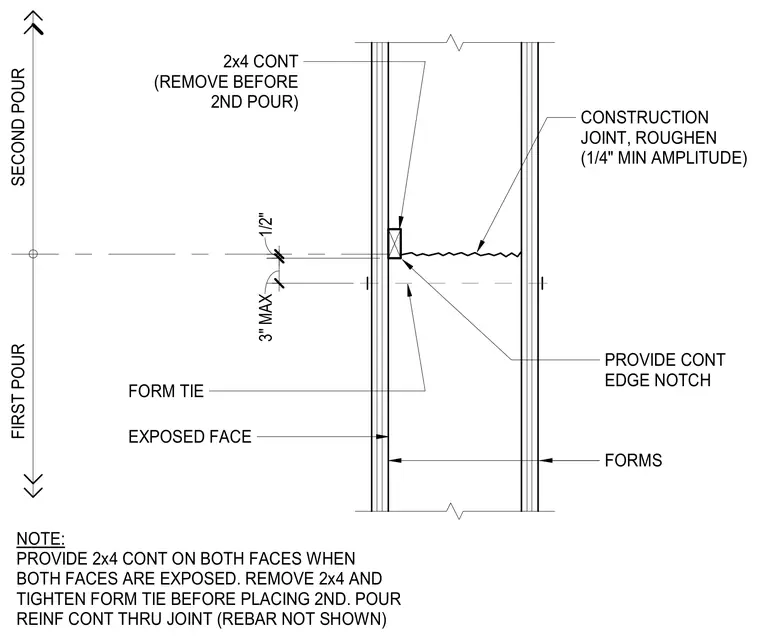

A horizontal construction joint details the transition between a first and second concrete wall pour. The interface features a roughened surface with a minimum amplitude of one quarter inch and a continuous edge notch. A continuous two-by-four is temporarily positioned at the joint and removed before the second pour. Form ties are located within three inches maximum of the joint. Continuous reinforcing steel continues through the joint.
SECOND POUR FIRST POUR 2x4 CONT (REMOVE BEFORE 2ND POUR) CONSTRUCTION JOINT, ROUGHEN (1/4" MIN AMPLITUDE) PROVIDE CONT EDGE NOTCH FORM TIE EXPOSED FACE FORMS NOTE: PROVIDE 2x4 CONT ON BOTH FACES WHEN BOTH FACES ARE EXPOSED. REMOVE 2x4 AND TIGHTEN FORM TIE BEFORE PLACING 2ND. POUR REINF CONT THRU JOINT (REBAR NOT SHOWN) 1/2" 3" MAX
