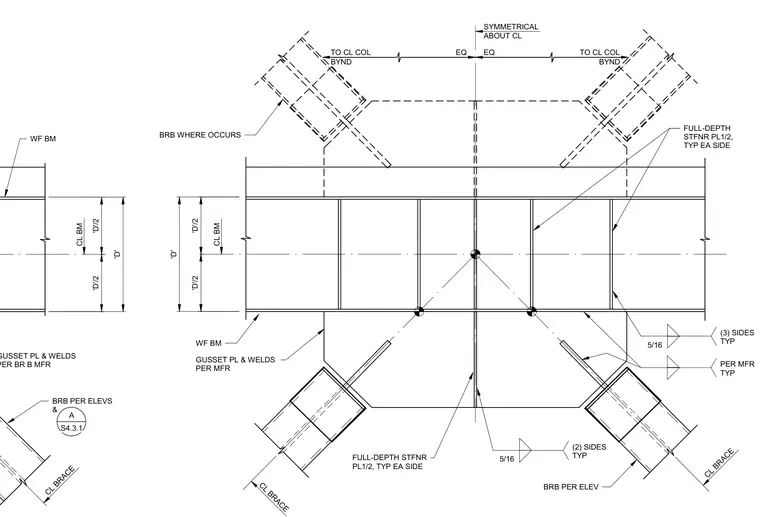

A buckling-restrained brace connection frames into a wide flange beam. Full-depth stiffener plates measuring one-half inch thick are welded to each side of the beam web. Gusset plates and associated welds are provided per the manufacturer requirements. Fillet welds of five-sixteenths inch are specified on two or three sides as typical connections. The assembly is symmetrical about the centerline.
WF BM GUSSET PL & WELDS PER BR B MFR BRB PER ELEVS & A S4.3.1 'D'/2 'D'/2 'D' CL BM CL BRACE WF BM GUSSET PL & WELDS PER MFR BRB PER ELEV FULL-DEPTH STFNR PL1/2, TYP EA SIDE FULL-DEPTH STFNR PL1/2, TYP EA SIDE 'D'/2 'D'/2 'D' 5/16 (2) SIDES TYP PER MFR TYP 5/16 (3) SIDES TYP TO CL COL BYND EQ TO CL COL BYND EQ SYMMETRICAL ABOUT CL CL BM CL BRACE CL BRACE BRB WHERE OCCURS
