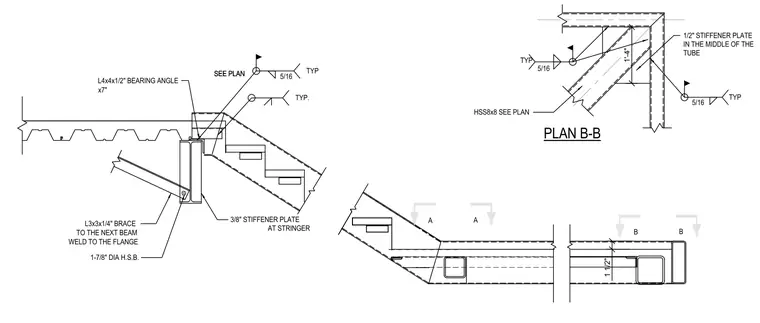

A steel stair stringer connection frames into a support beam with an L4x4x1/2 bearing angle and a three-eighths-inch stiffener plate at the stringer. An L3x3x1/4 brace connects to the next beam using a one-and-seven-eighths-inch diameter high-strength bolt and is welded to the flange. Plan view B-B details an HSS8x8 hollow structural section with a half-inch stiffener plate placed in the middle of the tube. Five-sixteenths-inch typical fillet welds are specified throughout the connection assembly.
1 1/2" 1'-4" A A B B TYP. 5/16 TYP 5/16 TYP 5/16 TYP SEE PLAN SEE PLAN PLAN B-B 3/8" STIFFENER PLATE AT STRINGER L3x3x1/4" BRACE TO THE NEXT BEAM WELD TO THE FLANGE 1-7/8" DIA H.S.B. L4x4x1/2" BEARING ANGLE x7" 1/2" STIFFENER PLATE IN THE MIDDLE OF THE TUBE HSS8x8 SEE PLAN
