Structural · S-N7DQP

Typical Duct Brace Top Connections

Materials

Concrete Steel Glass / Glazing Metal (misc.)

Elements

Decks Bracing Insulation Anchors / Embeds Connections / Plates

Connections

Bracing Connection Bolted Connection Embed Plate

About this detail

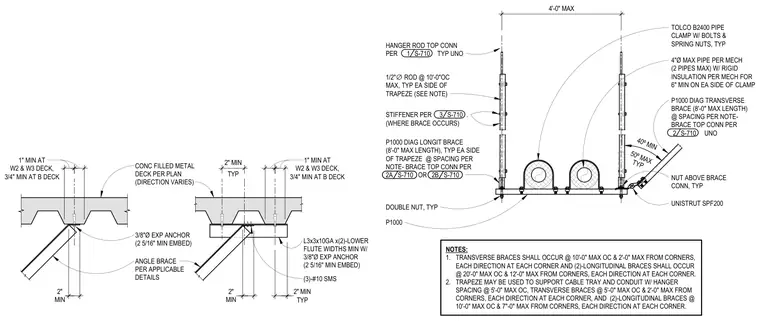

Top connections for transverse and longitudinal duct braces are anchored to a concrete-filled metal deck. Hanger rods of 1/2 inch diameter are secured to the deck using expansion anchors and angle attachments, spaced at a maximum of 10 feet on center. Unistrut channels form the trapeze assembly, supporting up to 4-inch diameter pipes with rigid insulation and Tolco pipe clamps. Diagonal strut bracing is connected at angles between 40 and 50 degrees to provide lateral stability.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
