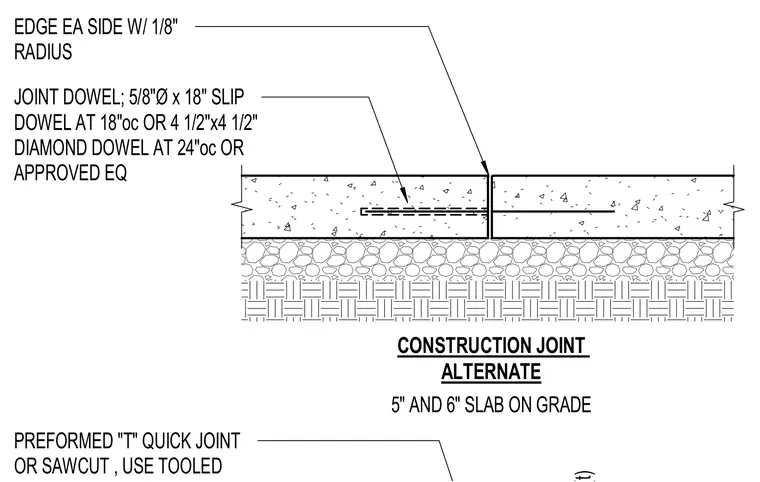

A construction joint for five-inch and six-inch slabs on grade. The joint features either five-eighths-inch diameter by eighteen-inch slip dowels spaced at eighteen inches on center, four-and-a-half-inch by four-and-a-half-inch diamond dowels spaced at twenty-four inches on center, or an approved equivalent preformed "T" quick joint. The concrete edges on each side are finished with a one-eighth-inch radius. Alternatively, a sawcut or tooled edge is used.
5" AND 6" SLAB ON GRADE CONSTRUCTION JOINT ALTERNATE EDGE EA SIDE W/ 1/8" RADIUS JOINT DOWEL; 5/8"Ø x 18" SLIP DOWEL AT 18"oc OR 4 1/2"x4 1/2" DIAMOND DOWEL AT 24"oc OR APPROVED EQ PREFORMED "T" QUICK JOINT OR SAWCUT , USE TOOLED
