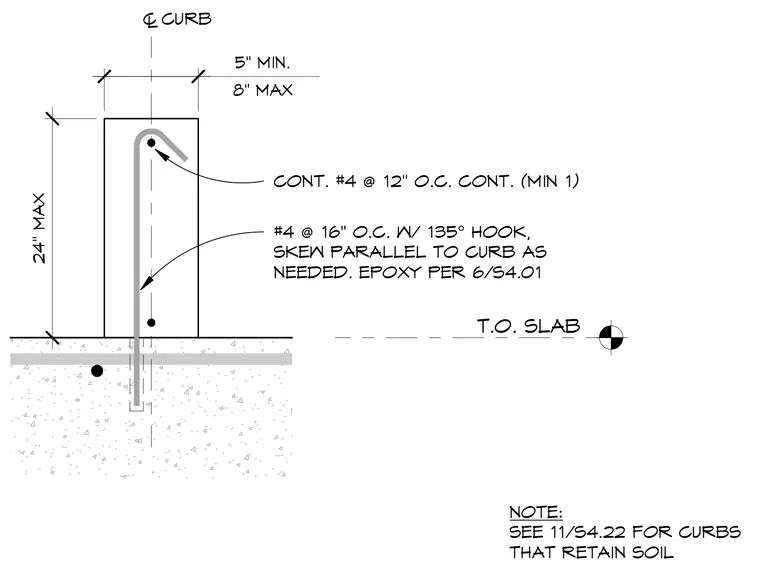

A standard concrete curb is set atop a concrete slab with a top of slab elevation reference line. The curb has a width varying between a five inch minimum and eight inch maximum, and a maximum height of twenty-four inches. Vertical reinforcing consists of number four bars spaced at sixteen inches on center with a one hundred thirty-five degree hook, skewed parallel to the curb as needed and anchored with epoxy per detail 6/S4.01. Longitudinal reinforcement includes continuous number four bars at twelve inches on center with a minimum of one continuous bar. A general note directs the user to detail 11/S4.22 for curbs that retain soil.
® CURB T.O. SLAB 8" MAX 5" MIN. 24" MAX #4 @ 16" O.C. W/ 135° HOOK, SKEW PARALLEL TO CURB AS NEEDED. EPOXY PER 6/S4.01 CONT. #4 @ 12" O.C. CONT. (MIN 1) NOTE: SEE 11/S4.22 FOR CURBS THAT RETAIN SOIL
