Electrical · S-N7AM9

Glass Break Wall Mount

Materials

Elements

About this detail

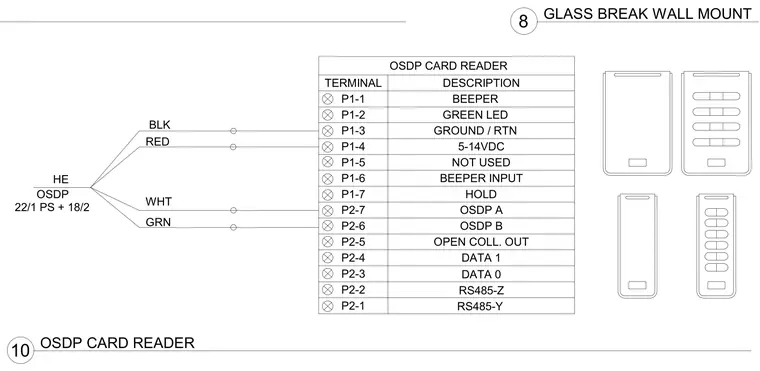

The diagram details the wiring connections for an OSDP card reader utilizing a cable configuration with black, red, white, and green conductors. Terminal connections map out specific functions including beeper, green LED, ground, power supply, hold, OSDP communication lines, and data signals. Reader unit outlines and a complete terminal schedule cross-reference each connection point for installation.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
