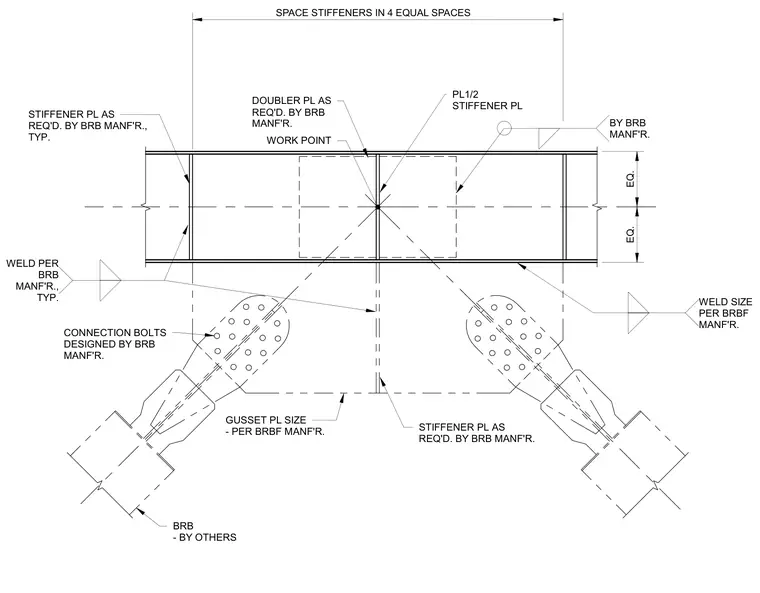

This structural connection detail shows a buckling-restrained braced frame connection framing into a steel beam at a designated work point. The assembly incorporates gusset plates, half-inch stiffener plates spaced evenly in four equal intervals, and doubler plates sized according to the manufacturer's specifications. Welds and connection bolts are provided per the buckling-restrained brace manufacturer requirements, with the buckling-restrained braces themselves supplied by others.
WORK POINT GUSSET PL SIZE - PER BRBF MANF'R. STIFFENER PL AS REQ'D. BY BRB MANF'R. CONNECTION BOLTS DESIGNED BY BRB MANF'R. BRB - BY OTHERS WELD PER BRB MANF'R., TYP. STIFFENER PL AS REQ'D. BY BRB MANF'R., TYP. EQ. EQ. SPACE STIFFENERS IN 4 EQUAL SPACES DOUBLER PL AS REQ'D. BY BRB MANF'R. WELD SIZE PER BRBF MANF'R. BY BRB MANF'R. PL1/2 STIFFENER PL
