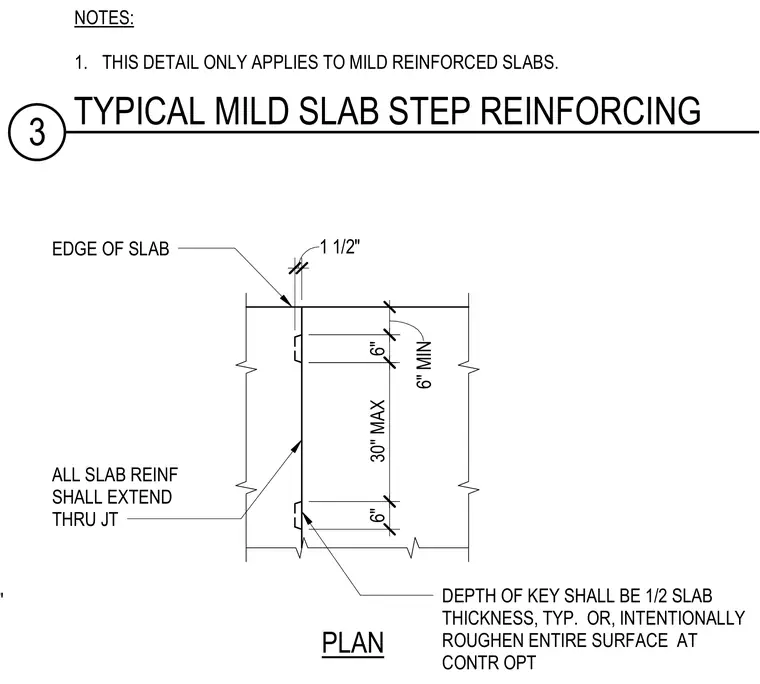

Step reinforcing requirements for mild reinforced concrete slabs. All slab reinforcement must extend continuously through the joint. The key depth is specified as one-half of the slab thickness typically, or the entire surface may be intentionally roughened at the contractor's option. A minimum horizontal clearance of one foot from parallel post-tensioning tendons must be maintained. The detail applies strictly to mild reinforced slabs.
6" 30" MAX 6" 6" MIN EDGE OF SLAB ALL SLAB REINF SHALL EXTEND THRU JT DEPTH OF KEY SHALL BE 1/2 SLAB THICKNESS, TYP. OR, INTENTIONALLY ROUGHEN ENTIRE SURFACE AT CONTR OPT PLAN 1 1/2" 30" MAX NOTES: 1. THIS DETAIL ONLY APPLIES TO MILD REINFORCED SLABS. 3. MAINTAIN A MINIMUM HORIZONTAL CLEARANCE FROM PARALLEL PT TENDONS OF 1'-0" 3 TYPICAL MILD SLAB STEP REINFORCING
