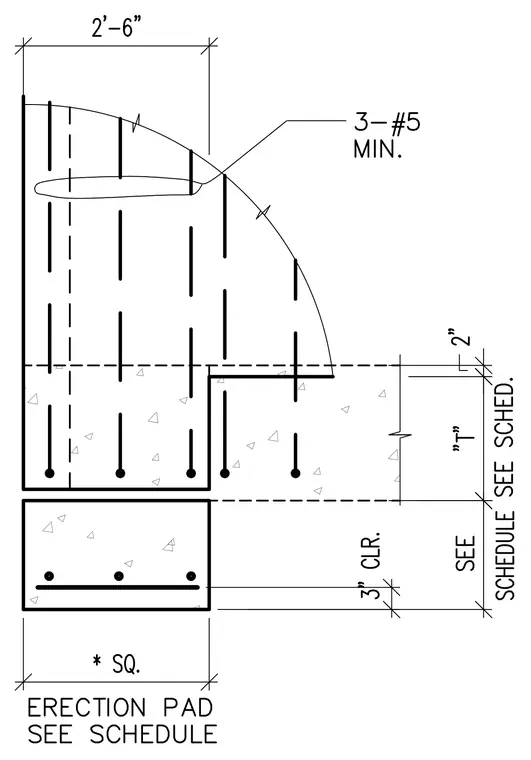

A reinforced concrete foundation wall bears on a separate square erection pad detailed per the structural schedule. The wall features a stepped profile with a thickness of T inches and vertical reinforcement anchored into the footing. A minimum of three number five reinforcing bars are detailed at the top connection zone. The erection pad maintains a three-inch clear cover and variable square dimensions sized per the schedule.
