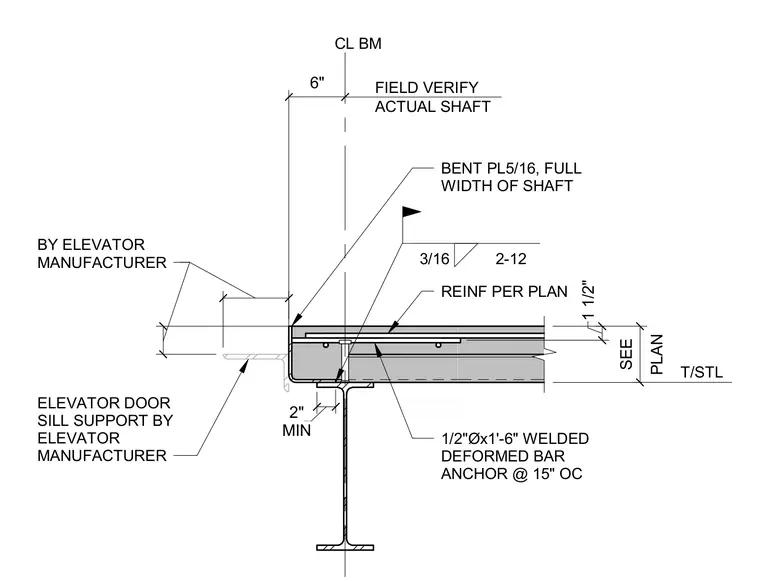

A bent five-sixteenths-inch plate spans the full width of the elevator shaft along the concrete slab edge and is anchored by one-half-inch diameter by one-foot six-inch welded deformed bar anchors spaced at fifteen inches on center. The assembly bears on a structural steel beam with reinforcement sized per plan. An elevator door sill support is provided by the elevator manufacturer, with actual shaft dimensions to be field verified. A three-sixteenths-inch fillet weld connects the embedded plate assembly.
T/STL FIELD VERIFY ACTUAL SHAFT BY ELEVATOR MANUFACTURER ELEVATOR DOOR SILL SUPPORT BY ELEVATOR MANUFACTURER 1/2"Øx1'-6" WELDED DEFORMED BAR ANCHOR @ 15" OC BENT PL5/16, FULL WIDTH OF SHAFT REINF PER PLAN 3/16 2-12 CL BM PLAN SEE 1 1/2" 6" MIN 2"
