Structural · S-N6YP2

Roof Edge Detail at Steel Framing and Exterior Wall

Materials

Steel Cold-formed Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

Beams Walls Windows Facades / Cladding Roofs Decks Arches Bracing

Connections

Bracing Connection

About this detail

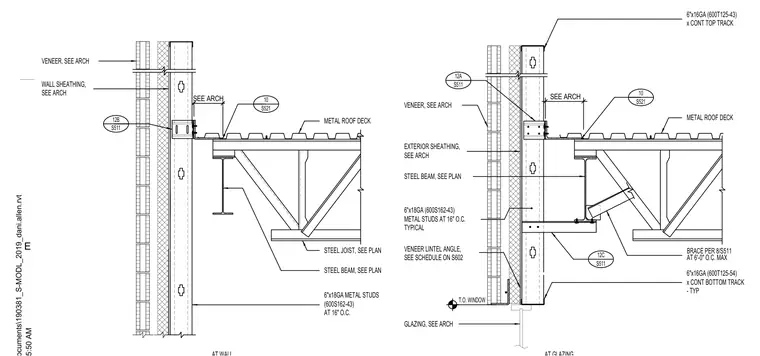

Roof edge conditions connect to exterior cold-formed metal framing and steel structural members at both typical wall and window glazing transitions. The assembly incorporates metal roof decking supported by steel joists and steel beams as sized per plan. Exterior walls utilize six-inch by eighteen-gauge metal studs spaced at sixteen inches on center, supplemented by six-inch by sixteen-gauge continuous top and bottom tracks. At the glazing transition, a veneer lintel angle supports the exterior cladding above the window head, referencing schedule S602. Structural bracing is provided per detail 8 on sheet S511 at a maximum spacing of six feet on center. Exterior sheathing, wall sheathing, and veneer are coordinated per architectural drawings.
