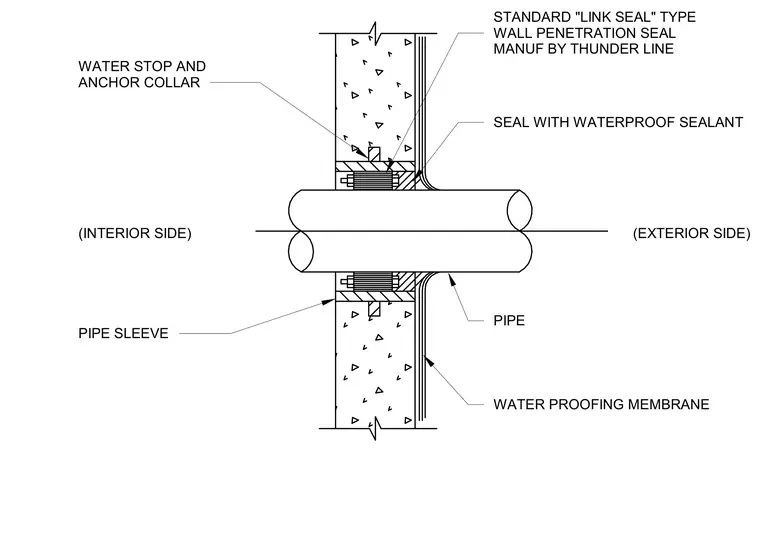

A pipe passes through a concrete wall via a pipe sleeve equipped with an embedded water stop and anchor collar. The annular space between the pipe and sleeve is sealed with a standard link-seal type wall penetration seal manufactured by Thunder Line. An exterior waterproofing membrane wraps the wall face and is sealed at the penetration with a waterproof sealant.
PIPE SLEEVE STANDARD "LINK SEAL" TYPE WALL PENETRATION SEAL MANUF BY THUNDER LINE WATER STOP AND ANCHOR COLLAR WATER PROOFING MEMBRANE SEAL WITH WATERPROOF SEALANT PIPE (INTERIOR SIDE) (EXTERIOR SIDE)
