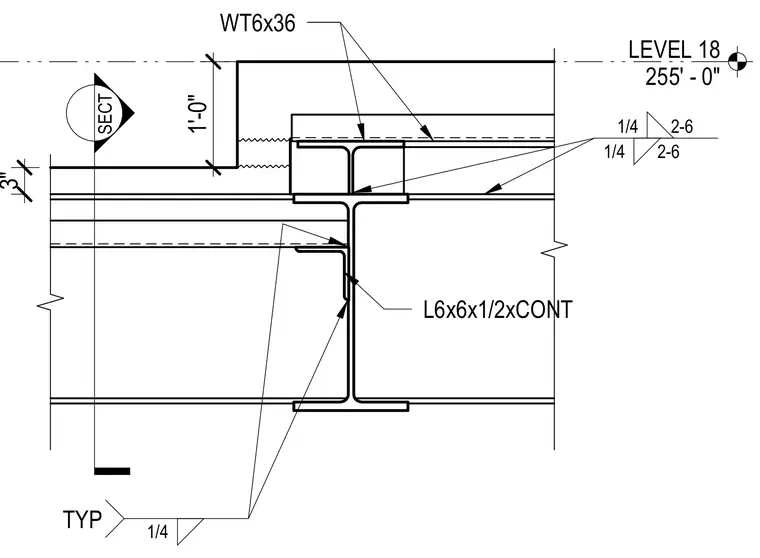

A WT6x36 structural tee frames into the assembly with a continuous L6x6x1/2 angle welded in place. Fillet welds of one-quarter inch size connect the structural members with a two-inch by six-inch pattern typically applied throughout. The detail incorporates a one-foot vertical offset at Level 18, set at elevation two hundred fifty-five feet zero inches.
