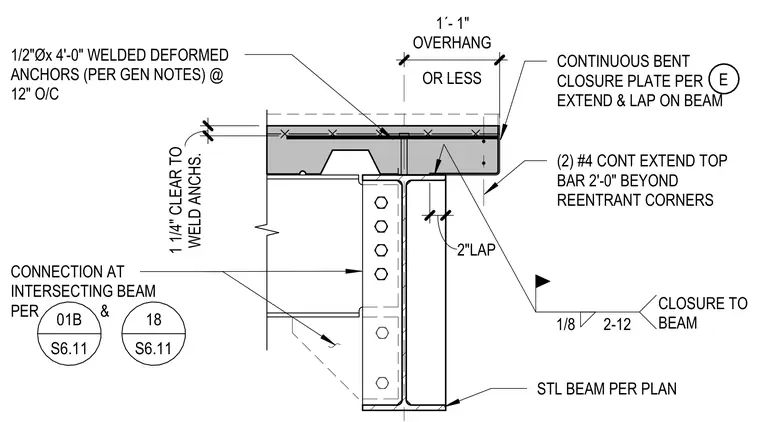

A continuous bent closure plate is welded to the steel beam with a one-eighth-inch fillet weld spaced at two to twelve inches. Two number four continuous reinforcing bars extend two feet beyond reentrant corners with a two-inch lap. Half-inch diameter by four-foot welded deformed anchors are spaced at twelve inches on center with one-and-a-quarter-inch clearance to weld anchors. An intersecting steel beam connects via a bolted shear tab as sized per plan.
CONNECTION AT INTERSECTING BEAM PER & 1/2"Øx 4'-0" WELDED DEFORMED ANCHORS (PER GEN NOTES) @ 12" O/C STL BEAM PER PLAN CONTINUOUS BENT CLOSURE PLATE PER EXTEND & LAP ON BEAM (2) #4 CONT EXTEND TOP BAR 2'-0" BEYOND REENTRANT CORNERS 2"LAP OR LESS 1´- 1" OVERHANG WELD ANCHS. 1 1/4" CLEAR TO 01B S6.11 18 S6.11 1/8 2-12 CLOSURE TO BEAM E
