Structural · S-N6DW8

Dunnage Platform Screenwall at Post

Materials

Steel Metal (misc.)

Elements

Columns Beams Walls Arches Connections / Plates

Connections

HSS Connection Bolted Connection

About this detail

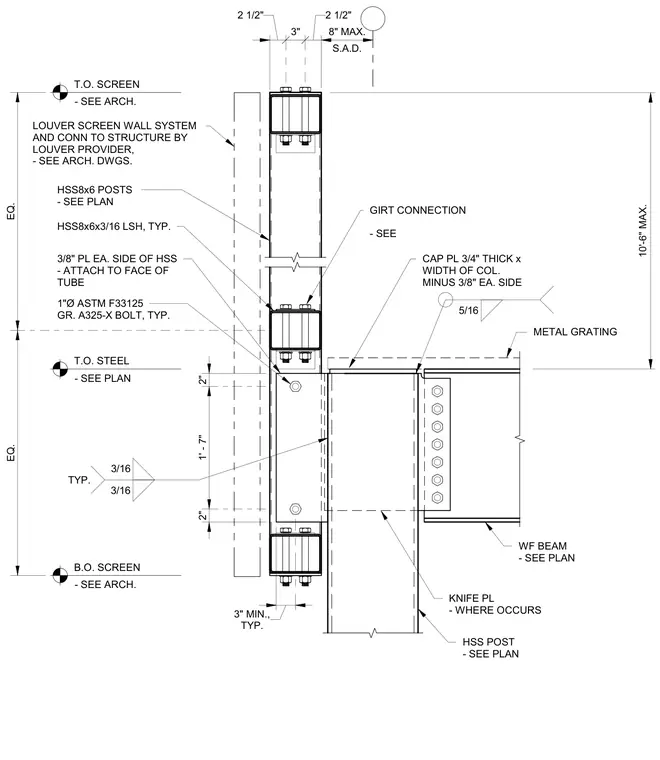

An HSS 8x6 column post connects to a wide-flange beam using a knife plate and bolted connections, with a three-quarter-inch thick cap plate welded via a five-sixteenth-inch fillet weld. HSS 8x6 by three-sixteenths structural tubing girts attach using three-eighth-inch plates on each side of the hollow structural section, secured by one-inch diameter ASTM F33125 Grade A325-X bolts. A metal grating sits above the structural steel framing, while the louver screen wall system and its connection to the structure are provided per architectural drawings.
