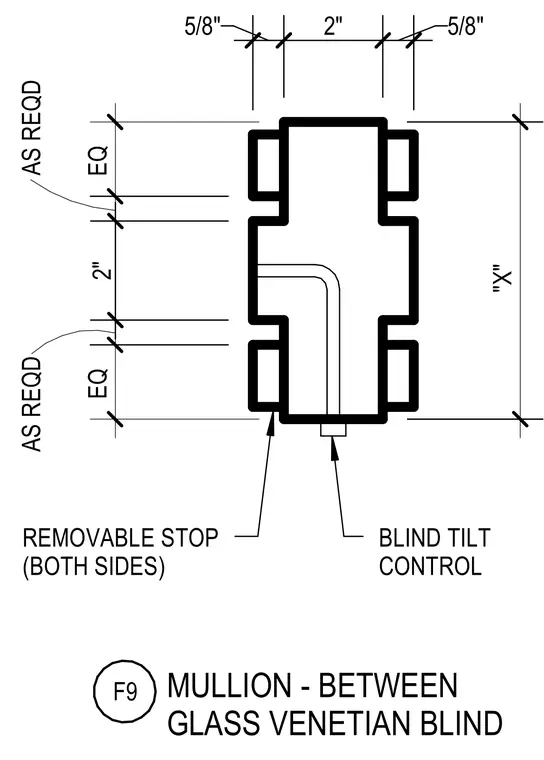

A mullion assembly accommodates between-glass venetian blinds with an integrated tilt control mechanism. Removable stops are provided on both sides for maintenance and installation access. Dimensioning includes a standard two-inch profile width with five-eighths-inch offsets, alongside variable spacing dimensions as required by site conditions. The cross-section indicates a specialized frame profile meant for glazing systems incorporating internal blinds.
5/8" 2" 5/8" 2" "X" MULLION - BETWEEN GLASS VENETIAN BLIND F9 REMOVABLE STOP (BOTH SIDES) BLIND TILT CONTROL AS REQD AS REQD EQ EQ
