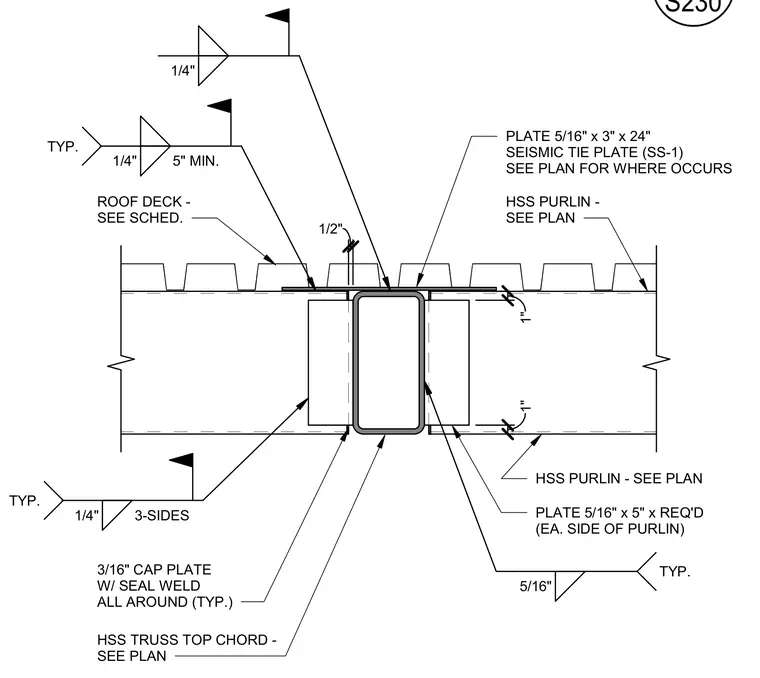

A seismic tie plate connection joins hollow structural section purlins to a hollow structural section truss top chord beneath a roof deck. A five-sixteenths-inch by three-inch by twenty-four-inch seismic tie plate spans across the top of the purlins, welded with quarter-inch fillet welds on three sides typically. Each side of the purlin connects to the chord with a five-sixteenths-inch by five-inch plate welded with a five-sixteenths-inch fillet weld typically. The hollow structural section purlin features a three-sixteenths-inch cap plate welded with a seal weld all around typically.
1" 1" 1/2" 1/4" 3-SIDES TYP. 5/16" TYP. PLATE 5/16" x 5" x REQ'D (EA. SIDE OF PURLIN) HSS PURLIN - SEE PLAN ROOF DECK - SEE SCHED. 3/16" CAP PLATE W/ SEAL WELD ALL AROUND (TYP.) PLATE 5/16" x 3" x 24" SEISMIC TIE PLATE (SS-1) SEE PLAN FOR WHERE OCCURS 1/4" 5" MIN. TYP. 1/4" HSS TRUSS TOP CHORD - SEE PLAN HSS PURLIN - SEE PLAN S230
