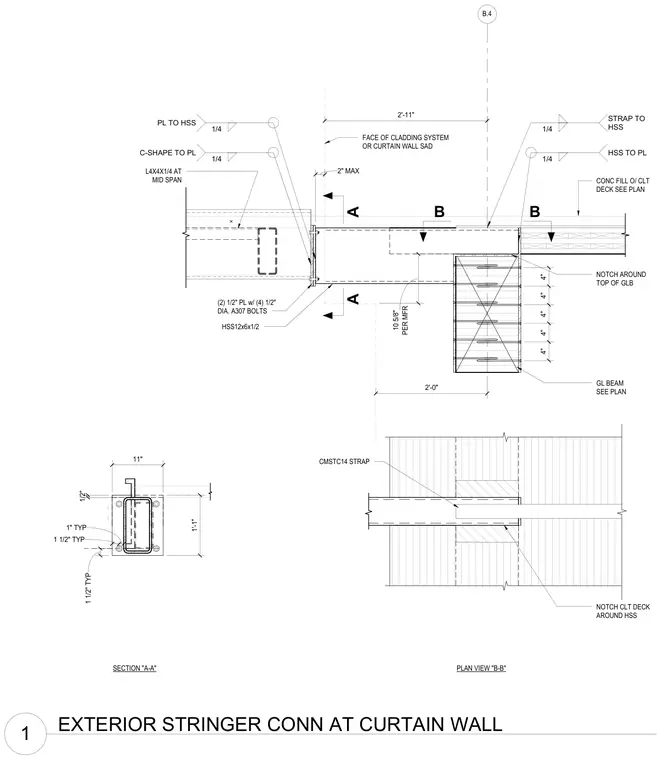

An HSS12x6x1/2 structural steel stringer connects to the building structure near the exterior cladding line, featuring an end plate assembly with two one-half-inch plates secured by four one-half-inch diameter ASTM A307 bolts. A C-shape profile is welded to the plate with a quarter-inch fillet weld, and the plate is welded to the HSS member with a quarter-inch weld. The HSS stringer frames past an L4x4x1/4 angle at mid-span and ties back with a CMSTC14 strap welded with a quarter-inch fillet weld. The assembly integrates with a glulam beam and cross-laminated timber deck topped with concrete fill, notched to clear the structural steel elements.
CONC FILL O/ CLT DECK SEE PLAN GL BEAM SEE PLAN L4X4X1/4 AT MID SPAN B.4 PER MFR 10 5/8" HSS12x6x1/2 2'-0" SECTION "A-A" 11" 1'-1" 1 1/2" TYP 1" TYP 1/2" 1 1/2" TYP PLAN VIEW "B-B" NOTCH AROUND TOP OF GLB NOTCH CLT DECK AROUND HSS (2) 1/2" PL w/ (4) 1/2" DIA. A307 BOLTS 1/4 C-SHAPE TO PL 1/4 PL TO HSS 1/4 HSS TO PL 4" 4" 4" 4" 4" 2'-11" FACE OF CLADDING SYSTEM OR CURTAIN WALL SAD 1/4 STRAP TO HSS CMSTC14 STRAP 2" MAX A A B B 1 EXTERIOR STRINGER CONN AT CURTAIN WALL
