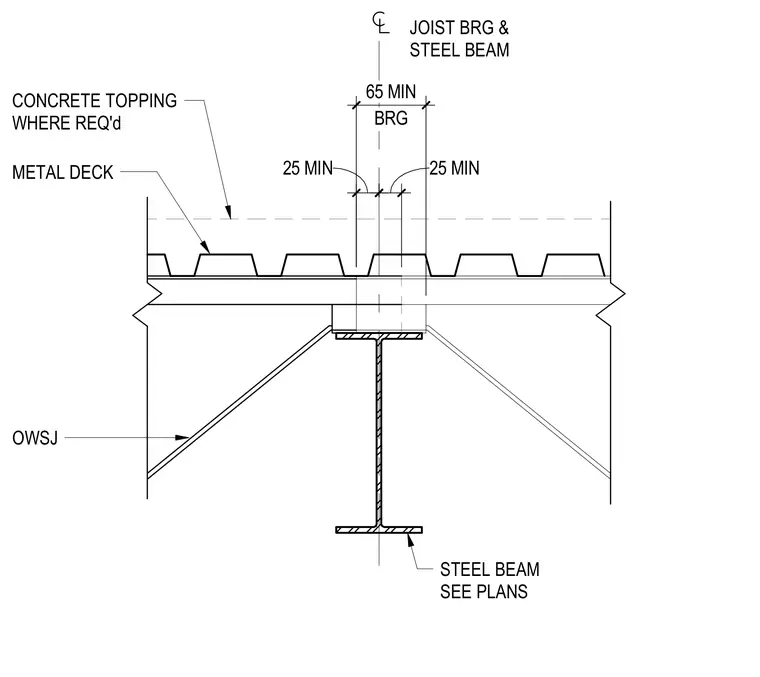

An open-web steel joist bears onto the top flange of a supporting steel beam sized per plans. A metal deck spans across the assembly with an optional concrete topping applied above. Staggered joist bearing requirements indicate minimum dimensions of sixty-five millimeters for total bearing and twenty-five millimeters for individual offsets from the centerline.
JOIST BRG & STEEL BEAM STEEL BEAM SEE PLANS OWSJ METAL DECK CONCRETE TOPPING WHERE REQ'd BRG 65 MIN 25 MIN 25 MIN
