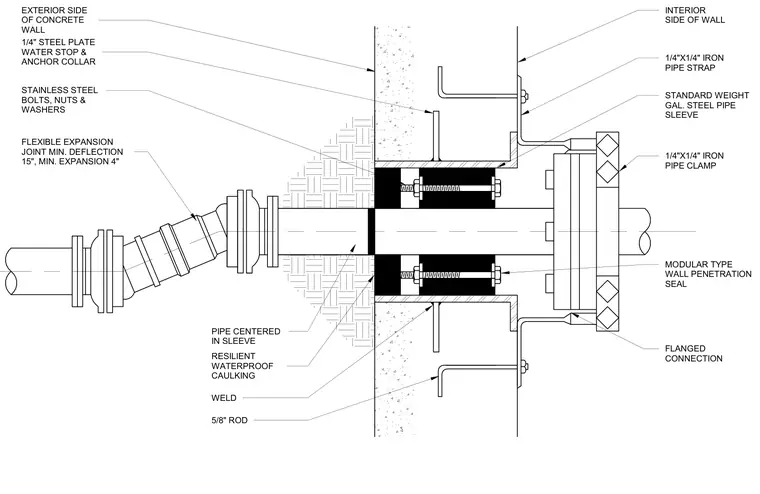

A standard weight galvanized steel pipe sleeve penetrates the concrete wall, centered around the pipe with resilient waterproof caulking and a modular type wall penetration seal. A quarter-inch steel plate acts as a water stop and anchor collar embedded in the exterior side of the concrete wall, secured with five-eighths inch rods and welded connections. Stainless steel bolts, nuts, and washers secure the flanged connections and the modular seal assembly. An iron pipe strap and quarter-inch by quarter-inch iron pipe clamp secure the interior piping. A flexible expansion joint accommodates a minimum deflection of fifteen inches and a minimum expansion of four inches on the exterior side.
INTERIOR SIDE OF WALL 1/4"X1/4" IRON PIPE STRAP STANDARD WEIGHT GAL. STEEL PIPE SLEEVE 1/4"X1/4" IRON PIPE CLAMP MODULAR TYPE WALL PENETRATION SEAL FLANGED CONNECTION PIPE CENTERED IN SLEEVE RESILIENT WATERPROOF CAULKING WELD 5/8" ROD EXTERIOR SIDE OF CONCRETE WALL 1/4" STEEL PLATE WATER STOP & ANCHOR COLLAR STAINLESS STEEL BOLTS, NUTS & WASHERS FLEXIBLE EXPANSION JOINT MIN. DEFLECTION 15", MIN. EXPANSION 4"
