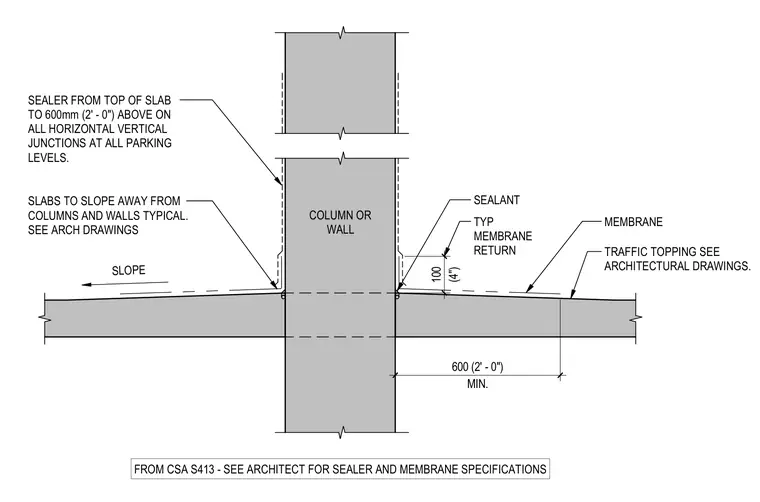

Concrete slabs slope away from columns and walls at all parking levels to promote positive drainage. A waterproofing membrane and traffic topping extend across the slab surface with a typical membrane return up the vertical face. Sealant is applied at the horizontal-vertical junctions, and a sealer coats the column or wall from the top of the slab to a height of six hundred millimeters or two feet above.
COLUMN OR WALL SLABS TO SLOPE AWAY FROM COLUMNS AND WALLS TYPICAL. SEE ARCH DRAWINGS SLOPE SEALER FROM TOP OF SLAB TO 600mm (2' - 0") ABOVE ON ALL HORIZONTAL VERTICAL JUNCTIONS AT ALL PARKING LEVELS. TRAFFIC TOPPING SEE ARCHITECTURAL DRAWINGS. (4") 100 MIN. 600 (2' - 0") SEALANT MEMBRANE TYP MEMBRANE RETURN FROM CSA S413 - SEE ARCHITECT FOR SEALER AND MEMBRANE SPECIFICATIONS
