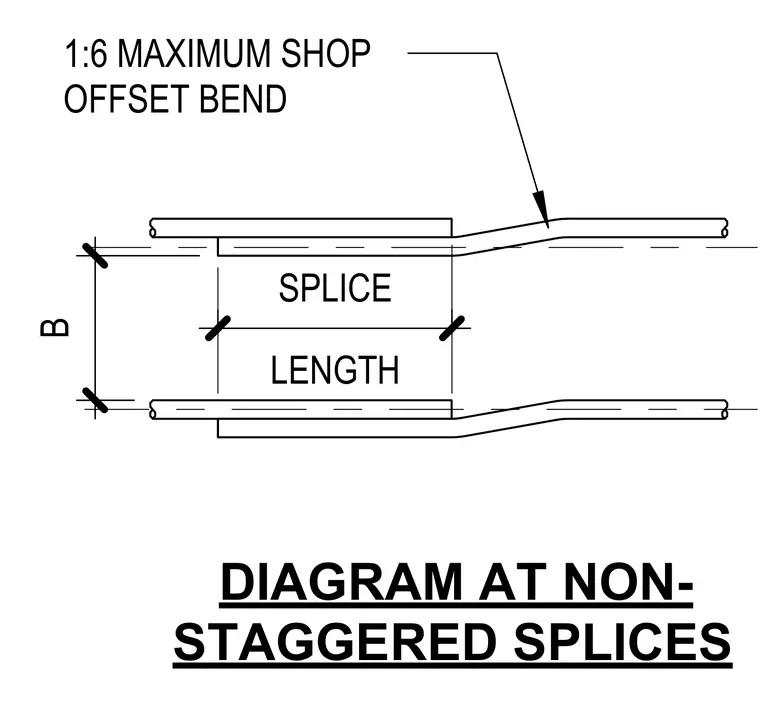

Reinforcing bars align side-by-side with a defined splice length and incorporate a one-to-six maximum shop offset bend to maintain alignment through the lap.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
