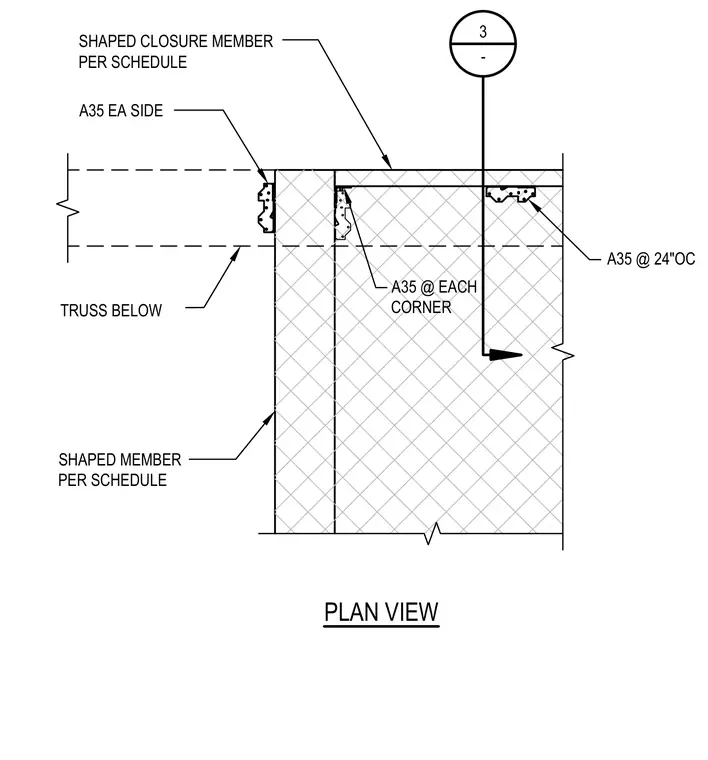

Shaped closure members and shaped framing members are detailed per schedule along the perimeter of the truss layout. A35 framing anchors are installed at each corner and spaced at twenty-four inches on center along the truss below. Additional A35 anchors are placed on each side as indicated in the plan view.
SHAPED CLOSURE MEMBER PER SCHEDULE SHAPED MEMBER PER SCHEDULE A35 EA SIDE A35 @ EACH CORNER TRUSS BELOW A35 @ 24"OC 3 - PLAN VIEW
