Structural · S-N56HZ

Steel Column Base Plate Weld and Dimension Plan

Materials

Concrete Steel Masonry / CMU

Elements

Columns

Connections

Base Plate / Anchorage Welded Connection

About this detail

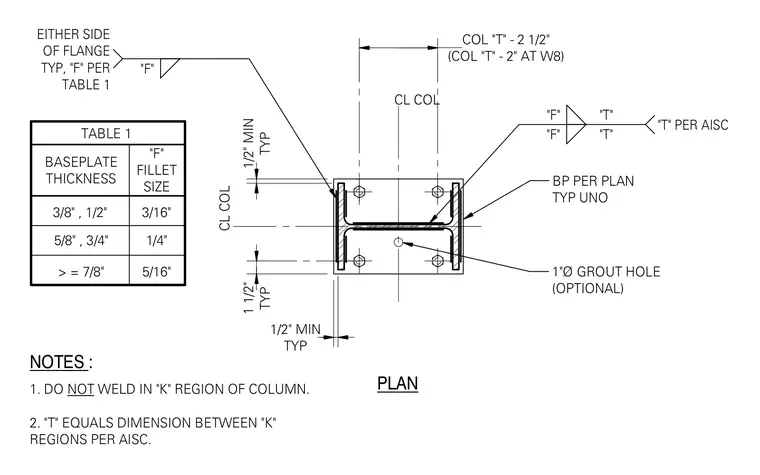

A structural plan detail for a steel column base plate connection shows sizing rules, fillet weld requirements, and clearance dimensions. A lookup table correlates base plate thicknesses ranging from three-eighths of an inch to seven-eighths of an inch and greater with corresponding fillet weld sizes of three-sixteenths, one-quarter, and five-sixteenths of an inch. Fillet welds are specified on either side of the column flange, with dimension t defined as the distance between the k-regions per AISC standards. An optional one-inch diameter grout hole is located centrally, and a general note mandates that welding is left out of the column k-region.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
