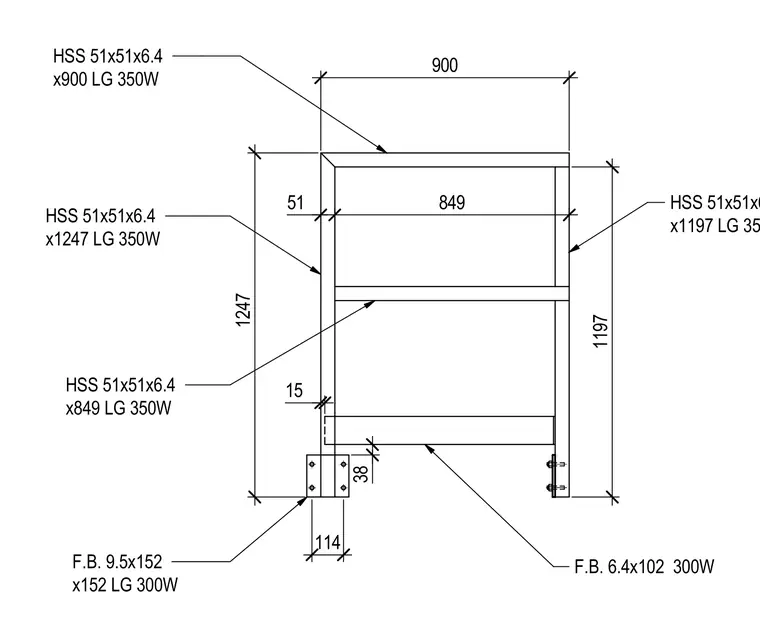

This structural assembly is constructed from hollow structural section members of 51x51x6.4 millimeter dimensions in varying lengths of 1247, 1197, 900, and 849 millimeters, using 350W steel. Flat bars measuring 9.5x152 millimeters by 152 millimeters long and 6.4x102 millimeters using 300W steel provide base and connection plates. The framework is dimensioned at 900 millimeters wide by 1247 millimeters high overall.
900 1247 15 849 51 1197 38 114 HSS 51x51x6.4 x1247 LG 350W HSS 51x51x6.4 x1197 LG 350W HSS 51x51x6.4 x900 LG 350W HSS 51x51x6.4 x849 LG 350W F.B. 9.5x152 x152 LG 300W F.B. 6.4x102 300W
