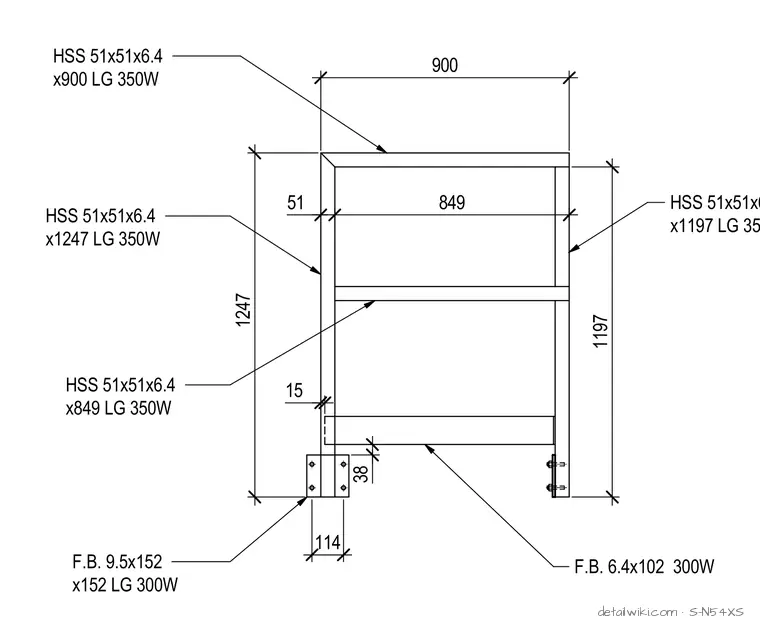

The assembly features hollow structural section (HSS) members measuring 51x51x6.4 with specified lengths, connected to flat bar (F.B.) plates such as a 9.5x152 base plate and a 6.4x102 connecting member. Dimensions are provided for overall sizing, spacing, and member placement. The drawing is fully dimensioned and labeled with specific steel grades like 350W and 300W.
Text on the drawing
900 1247 15 849 51 1197 38 114 HSS 51x51x6.4 x1247 LG 350W HSS 51x51x6.4 x1197 LG 350W HSS 51x51x6.4 x900 LG 350W HSS 51x51x6.4 x849 LG 350W F.B. 9.5x152 x152 LG 300W F.B. 6.4x102 300W
