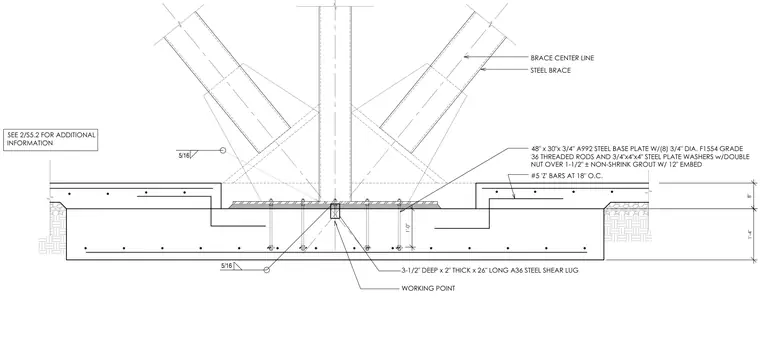

A forty-eight by thirty by three-quarter inch A992 steel base plate anchors a structural steel brace frame to a concrete foundation using eight three-quarter inch diameter F1554 Grade thirty threaded rods with double nuts over three-quarter by four by four inch steel plate washers and one and one-half inch non-shrink grout with twelve-inch embedment. A three and one-half inch deep by two-inch thick by twenty-six inch long A36 steel shear lug is welded beneath the base plate with five-sixteenth inch fillet welds. Number five Z bars are spaced at eighteen inches on center within the concrete slab and footing. Additional details for the assembly are referenced on sheet S5.2.
48" x 30"x 3/4" A992 STEEL BASE PLATE W/(8) 3/4" DIA. F1554 GRADE 36 THREADED RODS AND 3/4"x4"x4" STEEL PLATE WASHERS w/DOUBLE NUT OVER 1-1/2" ± NON-SHRINK GROUT W/ 12" EMBED BRACE CENTER LINE STEEL BRACE WORKING POINT 5/16 8" 1'-0" #5 'Z' BARS AT 18" O.C. 5/16 3-1/2" DEEP x 2" THICK x 26" LONG A36 STEEL SHEAR LUG SEE 2/S5.2 FOR ADDITIONAL INFORMATION 1'-4"
