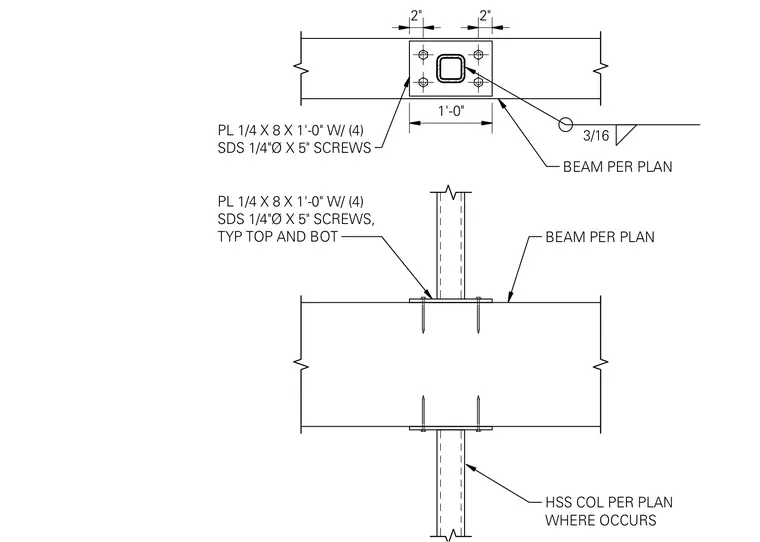

A hollow structural section column bears against a glulam timber beam per plan. The connection is made using top and bottom steel plates measuring 1/4 inch by 8 inches by 1 foot 0 inches. Each plate is secured to the timber beam with four 1/4 inch diameter by 5 inch long self-drilling structural wood screws. The steel column is welded to the plate with a 3/16 inch fillet weld.
HSS COL PER PLAN WHERE OCCURS BEAM PER PLAN PL 1/4 X 8 X 1'-0" W/ (4) SDS 1/4"Ø X 5" SCREWS, TYP TOP AND BOT 2" 2" BEAM PER PLAN PL 1/4 X 8 X 1'-0" W/ (4) SDS 1/4"Ø X 5" SCREWS 1'-0" 3/16
