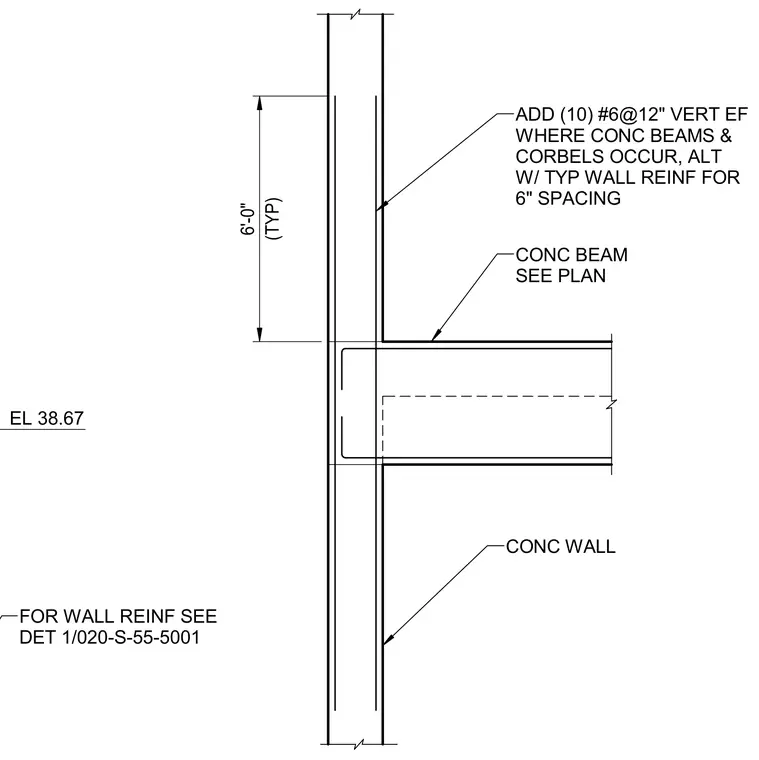

A concrete beam frames into a concrete wall at elevation 38.67, with concrete corbels occurring at the intersection. Ten number six vertical reinforcing bars spaced at twelve inches each face are added where concrete beams and corbels occur, alternating with typical wall reinforcement for a six inch spacing over a height of six feet. Additional wall reinforcement details are referenced to sheet 1/020-S-55-5001.
EL 38.67 FOR WALL REINF SEE DET 1/020-S-55-5001 (TYP) 6'-0" ADD (10) #6@12" VERT EF WHERE CONC BEAMS & CORBELS OCCUR, ALT W/ TYP WALL REINF FOR 6" SPACING CONC BEAM SEE PLAN CONC WALL
